Variable uvm_sequence_base::starting_phase is deprecated and replaced by two new methods set_starting_phase and get_starting_phase, which prevent starting_phase from being modified in the middle of a phase. This change is not backward-compatible with UVM 1.1,

though variable starting_phase, although deprecated, has not yet been removed from the base class library.

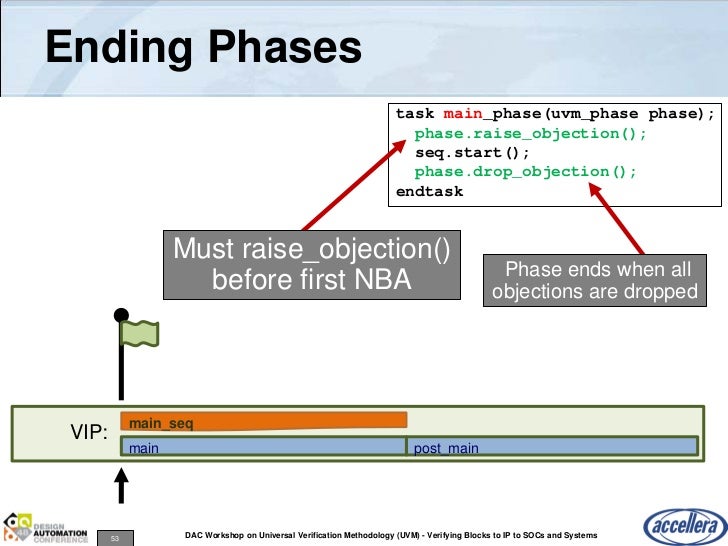

New method uvm_sequence_base::set_automatic_phase_objection causes raise_objection and drop_objection to be called automatically around a sequence, avoiding the need to call raise/drop_objection manually in one common situation.

Lets understand it through below mentioned example.

import uvm_pkg :: *;

class my_seq_item extends uvm_sequence_item;

  rand logic [7:0] addr;

  rand logic [7:0] data;

  constraint addr_range_cn {

    addr inside {[10:20]};

  }

  constraint data_range_cn {

    data inside {[100:200]};

  }

  `uvm_object_utils_begin(my_seq_item)

  `uvm_field_int(addr, UVM_ALL_ON| UVM_DEC)

  `uvm_field_int(data, UVM_ALL_ON| UVM_DEC)

  `uvm_object_utils_end

  function new(string name="my_seq_item");

    super.new(name);

  endfunction : new

  virtual function string convert2string();

    convert2string = $sformatf("addr=%0d, data=%0d", addr, data);

  endfunction : convert2string

endclass : my_seq_item

class my_sequencer extends uvm_sequencer #(my_seq_item);

  `uvm_component_utils (my_sequencer)

  function new (string name="my_sequencer", uvm_component parent=null);

    super.new(name, parent);

  endfunction : new

endclass : my_sequencer

class my_driver extends uvm_driver #(my_seq_item);

  `uvm_component_utils (my_driver)

  function new (string name="my_driver", uvm_component parent=null);

    super.new(name, parent);

  endfunction : new

  function void build_phase (uvm_phase phase);

    super.build_phase(phase);

  endfunction : build_phase

  task run_phase(uvm_phase phase);

    forever begin

      seq_item_port.get_next_item(req);

      `uvm_info(get_name(),

                $sformatf("in driver after get_next_item my_seq_item= %s", req.convert2string()), UVM_LOW);

      #50;

      `uvm_info(get_name(), $sformatf("item_done called"), UVM_LOW);

      seq_item_port.item_done();

    end

  endtask : run_phase

endclass : my_driver

class my_agent extends uvm_agent;

  `uvm_component_utils (my_agent)

  my_sequencer sqr;

  my_driver    drv;

  function new (string name="my_agent", uvm_component parent=null);

    super.new(name, parent);

  endfunction : new

  function void build_phase (uvm_phase phase);

    super.build_phase(phase);

    sqr = my_sequencer :: type_id :: create("sqr", this);

    drv = my_driver    :: type_id :: create("drv", this);

  endfunction : build_phase



  function void connect_phase (uvm_phase phase);

    super.connect_phase(phase);

    drv.seq_item_port.connect(sqr.seq_item_export);

  endfunction : connect_phase

endclass : my_agent



class my_seq extends uvm_sequence #(my_seq_item);

  `uvm_object_utils (my_seq)

  function new(string name="my_seq");

    super.new(name);

  // The most common interaction with the starting phase

  // within a sequence is to simply RAISE the phase's objection

  // prior to executing the sequence, and DROP the objection

  // after ending the sequence (either naturally, or

  // via a call to ). In order to

  // simplify this interaction for the user, the UVM

  // provides the ability to perform this functionality

  // automatically.

  // From a timeline point of view, the automatic phase objection

  // looks like:

  //| start() is executed

  //|   --! Objection is raised !--

  //|   pre_start() is executed

  //|   pre_body() is optionally executed

  //|   body() is executed

  //|   post_body() is optionally executed

  //|   post_start() is executed

  //|   --! Objection is dropped !--

  //| start() unblocks

  // NEVER set the automatic phase objection bit to 1 if your sequence

  // runs with a forever loop inside of the body, as the objection will

  // never get dropped!

  set_automatic_phase_objection(1);

  endfunction : new

  task body ();

    `uvm_create(req)

    if(!req.randomize()) begin

      `uvm_fatal(get_name(), $sformatf("Randomization failed"))

    end

    `uvm_info (get_name(),

               $sformatf("After randomizating in my_seq my_seq_item= %s",

               req.convert2string()), UVM_LOW)

    `uvm_send(req)

  endtask : body

endclass : my_seq

class my_test extends uvm_test;

  `uvm_component_utils (my_test)

  my_agent agent;

  function new (string name="my_test", uvm_component parent=null);

    super.new(name, parent);

  endfunction : new

  function void build_phase (uvm_phase phase);

    super.build_phase(phase);

    agent = my_agent::type_id::create("agent", this);

  endfunction : build_phase

  task run_phase(uvm_phase phase);

    my_seq seq;

    uvm_phase starting_phase;

    bit automatic_phase_objection_status;

    seq = my_seq::type_id::create ("seq");

    // Function: set_starting_phase

    // Sets the 'starting phase'.

    seq.set_starting_phase(phase);

    // If set_automatic_phase_objection is not called in new (constructor)

    // of sequence then can be calleb from test-case

    // seq.set_automatic_phase_objection(1);

    fork

      begin

        #30;

        // Function: get_starting_phase

        // Returns the 'starting phase'.

        // If non-null, the starting phase specifies the phase in which this

        // sequence was started.

        starting_phase = seq.get_starting_phase();

        `uvm_info(get_name(),

                  $sformatf("starting_phase:%s", starting_phase.get_full_name()), UVM_LOW)

        // Function: get_automatic_phase_objection

        // Returns (and locks) the value of the 'automatically object to

        // starting phase' bit.

        //

        // If 1, then the sequence will automatically raise an objection

        // to the starting phase (if the starting phase is not NULL) immediately

        // prior to being called.  The objection will be dropped

        // after has executed, or has been called.

        automatic_phase_objection_status = seq.get_automatic_phase_objection();

        `uvm_info(get_name(),

                  $sformatf("during seq is running, get_automatic_phase_objection returns :%b", automatic_phase_objection_status), UVM_LOW)

      end

    join_none

    seq.start(agent.sqr);

    automatic_phase_objection_status = seq.get_automatic_phase_objection();

    `uvm_info(get_name(),

              $sformatf("After seq finished, get_automatic_phase_objection returns :%b", automatic_phase_objection_status), UVM_LOW)

  endtask : run_phase

endclass : my_test

module top();

  initial begin

    run_test("my_test");

  end

endmodule : top
